Offroad 36V 1000W Electric ATV Dirt Quad
Model: LMEATV-500Z
1. Battery: 36V 12Ah Lead Acid
2.Motor: 36V 1000W brush
3.Tire: 6 inch
4.Max Speed: 6km/h, 15km/h, 25km/h
Share:
PARAMETERS
| Item No | LMEATV-500Z |
|---|---|
| Engine | 500W MOTOR. , brush motor |
| Starting | Electric start |
| Drive | Chian Drive |
| Transmission | F-N-R |
| Suspension | Dual shock absorber.Single shock absorber |
| Brake | Dual Disc brake,Singlle Disc Brake |
| Tyre | 13*5.0-6'; 13*5.0-6' |
| Fuel Tank | n.a |
| Seat Heigh | 48cm |
| Wheelbase | 69cm |
| Ground Clearance | 9.5cm |
| Max. Loading | 50kgs |
| Max. Speed | 25km/h– can limited to 15km/h |
| Product Size | 110*58.5*72cm |
| Packing Size | 115*60*60cm |
| G.W./N.W. | 40/36kgs |
| Brake Distance | ≤ 5m at 20 Km/h |
| Container Loading | 54Pieces/20”FT, 152Pieces/40”HQ |
DETAILS
Offroad 36V 1000W Electric ATV Dirt Quad
【Performance Advantages】For ages 10+. Rider weight up to 165 lbs. Air-filled (10PSI) strong rubber tubeless off road tires, steel rim. Front traverse double-arm independent suspension & rear suspension . Max speed 25 km/h, could be limited to 6 or 15 km/h. With front & rear DISC brake w./ parking mode. Climbing performance 12%. Standard limit of roll stability angle 25°. Painted plastic cover.

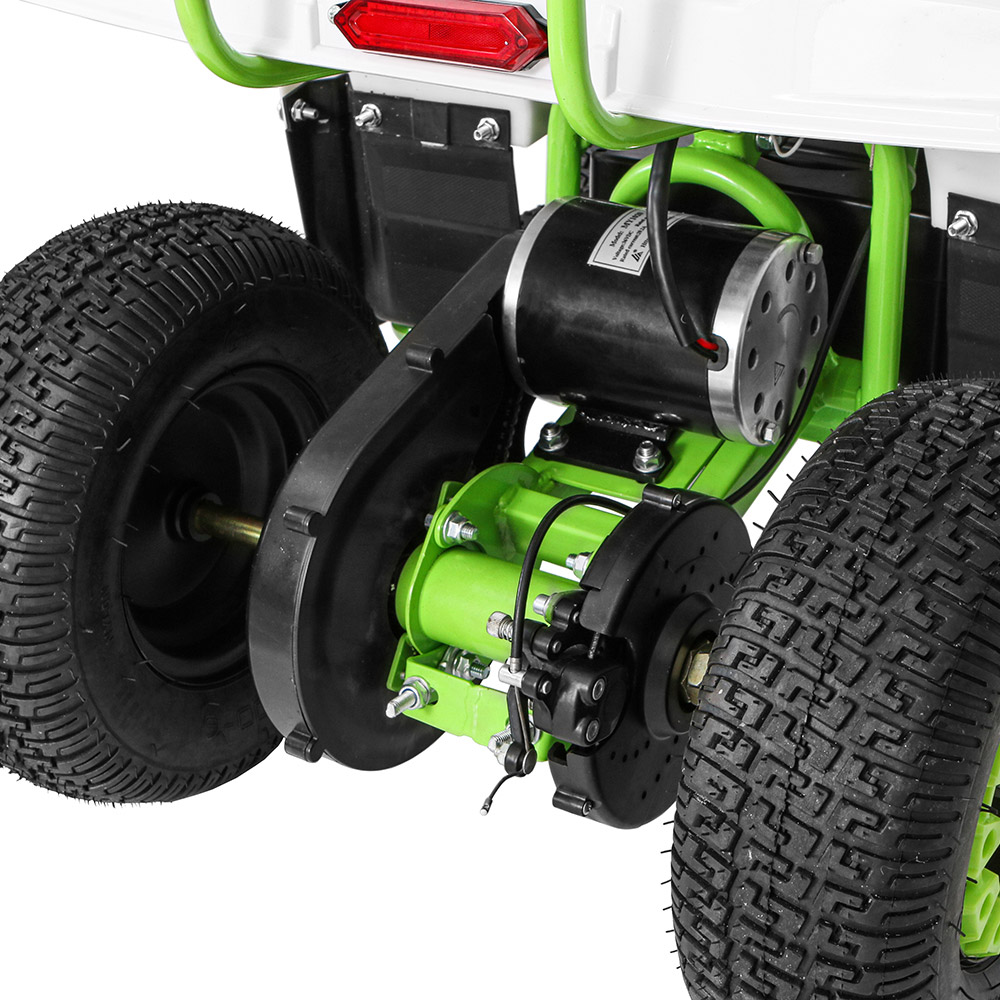

【36V 1000W Motor】This motor is powerful enough to bring you a real rider experience. Upgraded motor controller could protect the motor from overcurrent, overheating and blocking, which makes motor usage life longer than others.

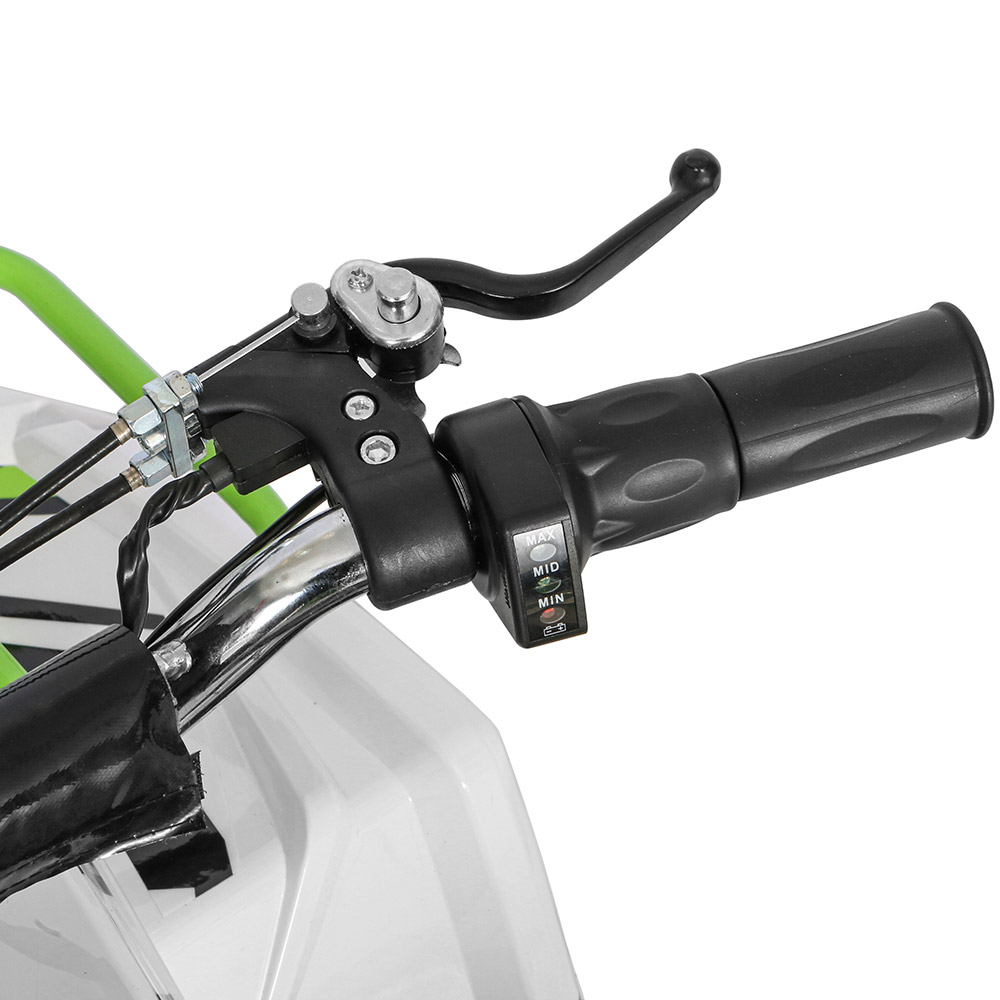

【Electric Control System】F-N-R with speed regulation (H-M-L) electric controlled integral gear sets (Forward, Neutral, Reverse, Speed of High, Medium, Low). Twist-grip throttle control applied with Hall Speed Sensor. With reverse gear which could be a great help for riders in some special occasions.
【Important Note】Decals & seat pad color may differ per vehicle. New batteries do not come in 100% charged. Users must fully charge the battery before using.
FRAMEWORKS
FAQ
1.What certificate do you have for ATV quad and dirt bike and ect?
Our factory has 1S09001， WMI and BSCI
a.All ATV and and Dirt bike are CE.ROSH available.MD for euro also in testing.
b. 110cc 125cc 150cc ATV and dirt bike with EPA approved ,have no problem for sell to US and CA.
2.Couldiusemy own LOGOordesignongoods?
Production order,we can use your own LOGO Or your
Yes. When you have a big quantity mass language;manual,and etc,
3.How long the battery can use?
We can recharge it more than 300 times. For the distance , we can see in the catalogue according to the different size battery.
4.Which is better , engine or electric ?
Both we have ,Its according to your market need , also some countries will have high import rate for the engine ATV or DB, you can check firstly for your market need and import policy, we all can offer according to your need .
5.Do you also sellhelmet,kneelet and other things?
We only sell vehicles but we can find it for you.
6.we can’t drive it on the road?
All our models are for off-road use.
Send us an inquiry
Q: can you accept OEM?
A:yes, we can.
Q: What is your MOQ?
A:MOQ is 100 units. At meantime, we also offer sample with charged.
Q: When can you delivery products?
A:Usually 30days. It denpends on your quantity.
Q: what is your payment
A: 30% in advance and balance before loading
Q: where is your factory?
A: We are in Yongkang city, Zhejiang province, China
Q: What payment options do you have?
We have some kinds of payment. Such as TT, LC and West Union，Euro and USD accounts are supported
