1500W Shaft Drive ATV
Model: LMEATV-1500G
As we know it was powered by electric motor and battery, it was with big size battery than 500W or 750W model, the battery size is 72V20Ah. It can be use for a long distance.
Share:
PARAMETERS
| Item No | LMEATV-1500G |
|---|---|
| Motor | 72V,1500w brushless |
| Battery | 72v,20Ah |
| Rated Speed(RPM) | 2850r/min |
| Rated Current | ≤26.0A |
| Rated torque | 5.2N.M |
| Drive | Shaft drive |
| Suspension | Dual Spring Damper;Single Spring Damper |
| Brakes F/R | Dual Disc brake ；Single Disc Brake |
| Tires F/R | 21*7.00-10；20*10.00-10, |
| Seat Height | 77cm |
| Wheelbase | 117cm |
| Ground Clearance | 17cm |
| G.W/N.W | 200/184kgs |
| Max.Load | 150kgs |
| Max speed | 50km/h |
| Charging time | 8-10Hours |
| Brake distance | 30km/h ≤7m |
| L*W*H | 184*111*110cm |
| Packing size | 163*83*81cm |
| Container Load | 14pcs/20ft,40pcs/40HQ |
DETAILS

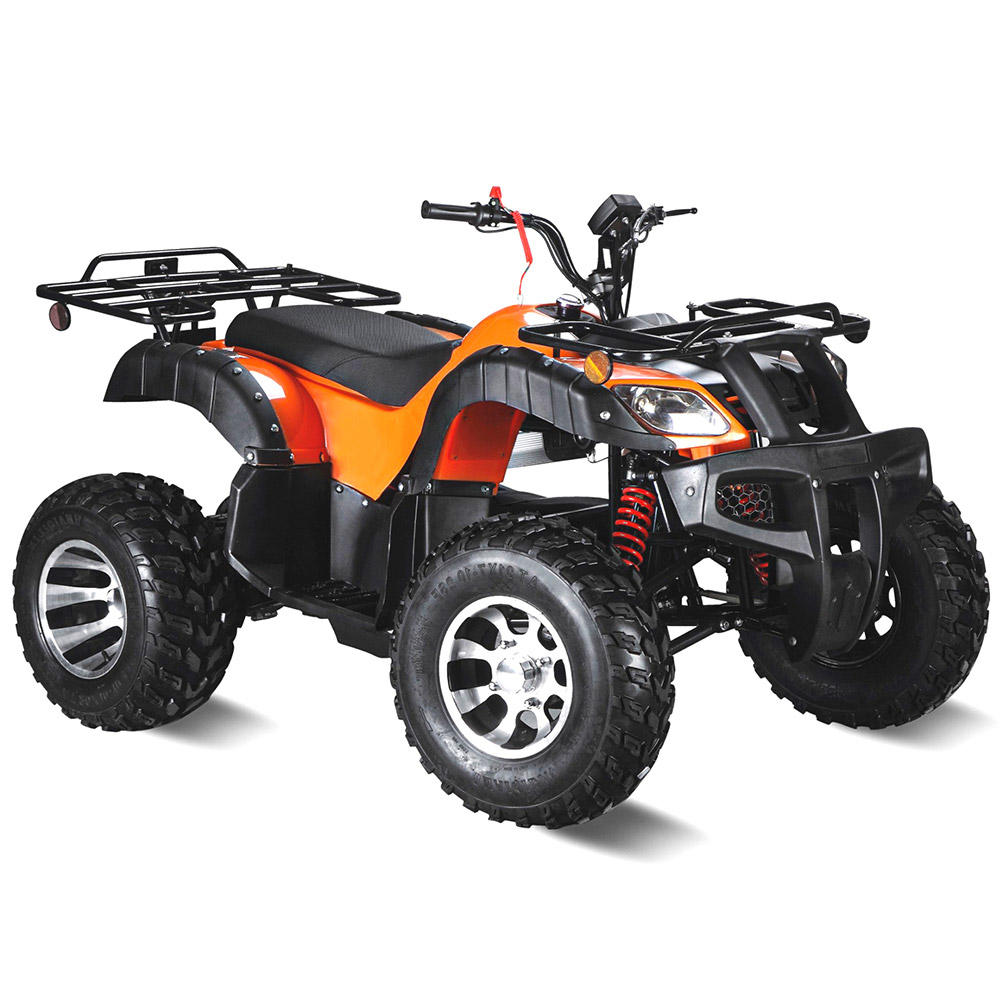

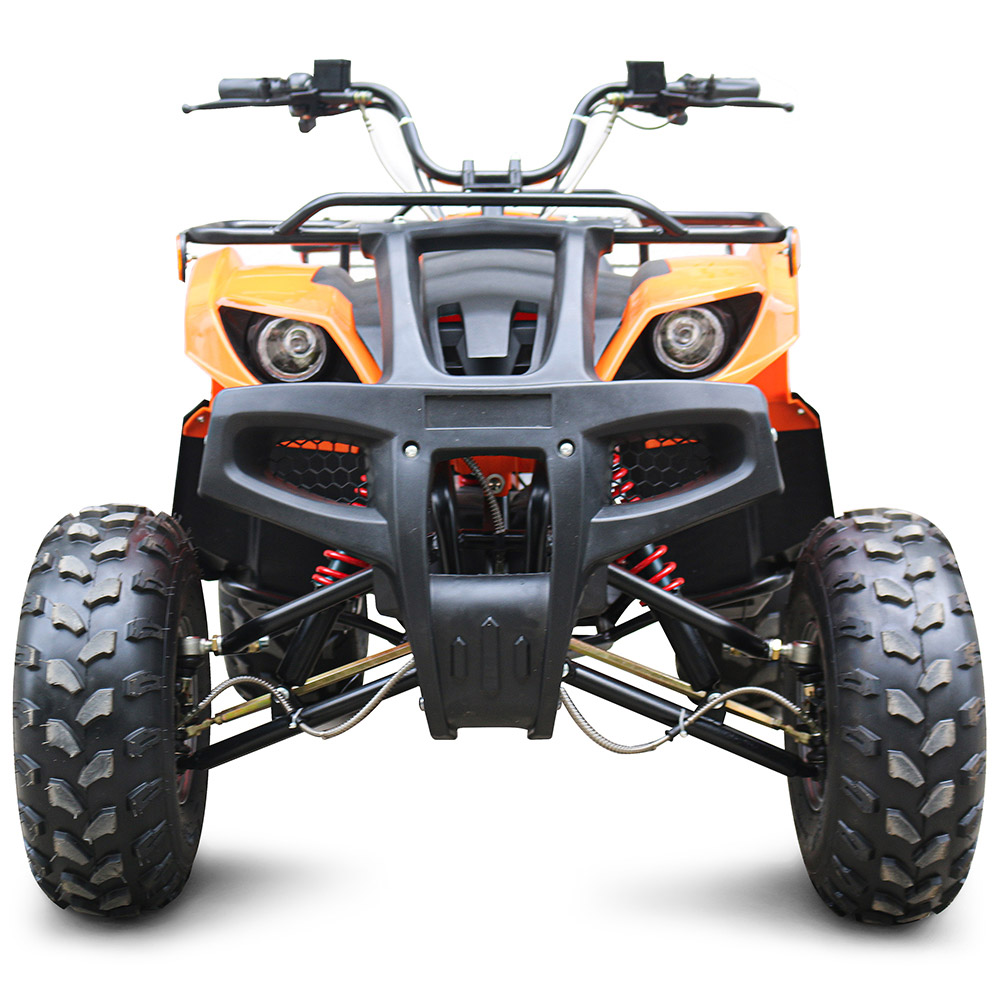

1500W Shaft Drive Electric ATV — LME-1500G
Electric All Terrain Vehicle, off road use only for adult!

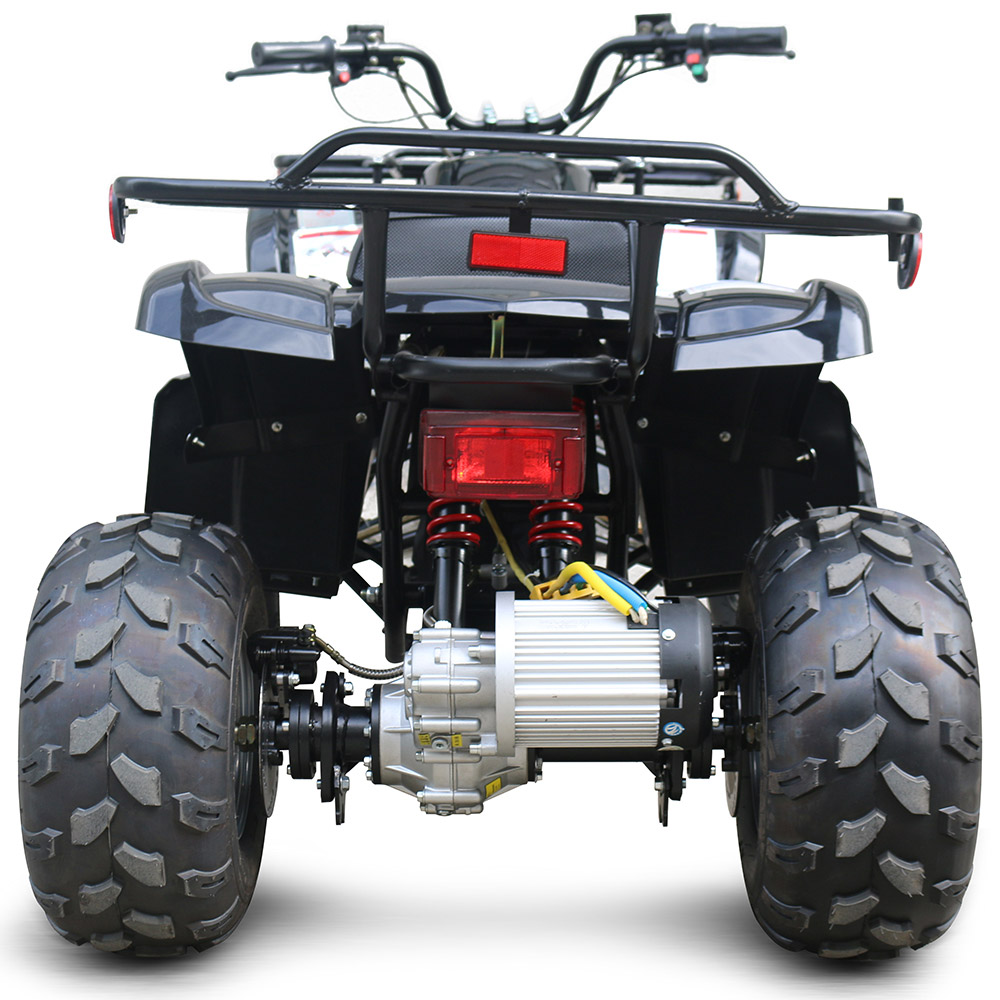

As we know it was powered by electric motor and battery, it was with big size battery than 500W or 750W model, the battery size is 72V20Ah. It can be use for a long distance. And the size of the wheel is more bigger: 10 inch! The best point is this ATV with a shaft drive 1500W motor. And two different speed you can switch when riding, high and low speed!
FRAMEWORKS
FAQ
1.What certificate do you have for ATV quad and dirt bike and ect?
Our factory has 1S09001， WMI and BSCI
a.All ATV and and Dirt bike are CE.ROSH available.MD for euro also in testing.
b. 110cc 125cc 150cc ATV and dirt bike with EPA approved ,have no problem for sell to US and CA.
2.Couldiusemy own LOGOordesignongoods?
Production order,we can use your own LOGO Or your
Yes. When you have a big quantity mass language;manual,and etc,
3.How long the battery can use?
We can recharge it more than 300 times. For the distance , we can see in the catalogue according to the different size battery.
4.Which is better , engine or electric ?
Both we have ,Its according to your market need , also some countries will have high import rate for the engine ATV or DB, you can check firstly for your market need and import policy, we all can offer according to your need .
5.Do you also sellhelmet,kneelet and other things?
We only sell vehicles but we can find it for you.
6.we can’t drive it on the road?
All our models are for off-road use.
Send us an inquiry
Q: can you accept OEM?
A:yes, we can.
Q: What is your MOQ?
A:MOQ is 100 units. At meantime, we also offer sample with charged.
Q: When can you delivery products?
A:Usually 30days. It denpends on your quantity.
Q: what is your payment
A: 30% in advance and balance before loading
Q: where is your factory?
A: We are in Yongkang city, Zhejiang province, China
Q: What payment options do you have?
We have some kinds of payment. Such as TT, LC and West Union，Euro and USD accounts are supported
