LMEATV-1000G 750W Shaft Drive ATV

Categories: , , SKU: LMEATV-1000G

Electric All Terrain Vehicle, as we know it was powered by electric motor and battery, it was with big size battery than 500W model 48V20Ah. And the size of the wheel is bigger than the normal 500W ATV, it was with 7 inch big tire.

Share:

Item No

LMEATV-1000G

Motor

48V,750w brushless with froward+reverse gear

Battery

48v,20Ah Lead acid battery

Rated Speed(RPM)

2800r/min

Rated Current

≤21.0A

Rated torque

2.56N.M

Drive

Shaft drive

Suspension

Dual Spring Damper;Single Spring Damper

Brakes F/R

Dual Disc brake ;Single Disc Brake

Tires F/R

7 inch

Seat Height

59cm

Wheelbase

85cm

Ground Clearance

15cm

G.W/N.W

126/115kgs

Max.Load

110kgs

Max speed

25km/h

Charging time

8-10Hours

Brake distance

30km/h ≤7m

L*W*H

150*90*98cm

Packing size

135*75*63cm

Container Load

36pcs/20ft,95pcs/40HQ

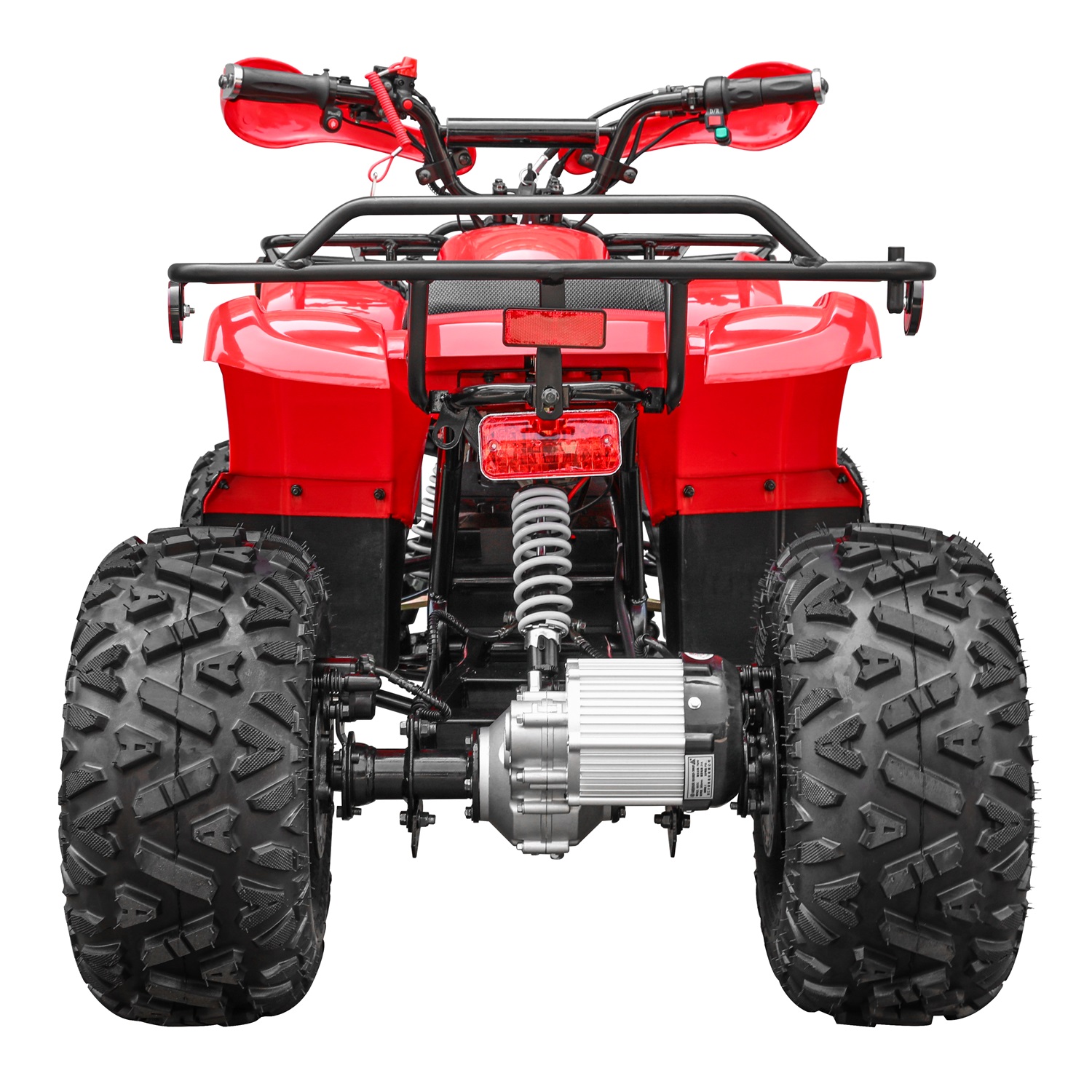

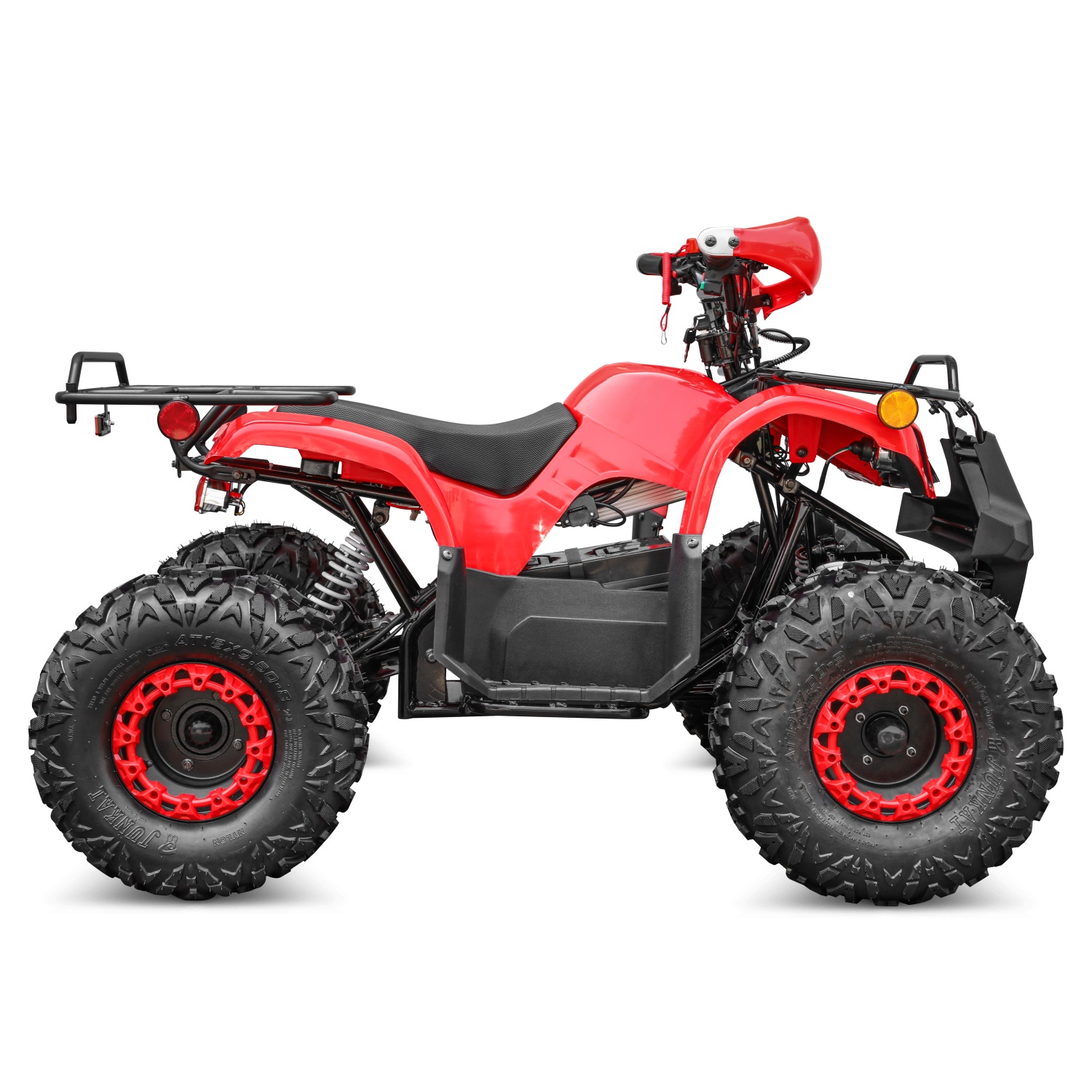

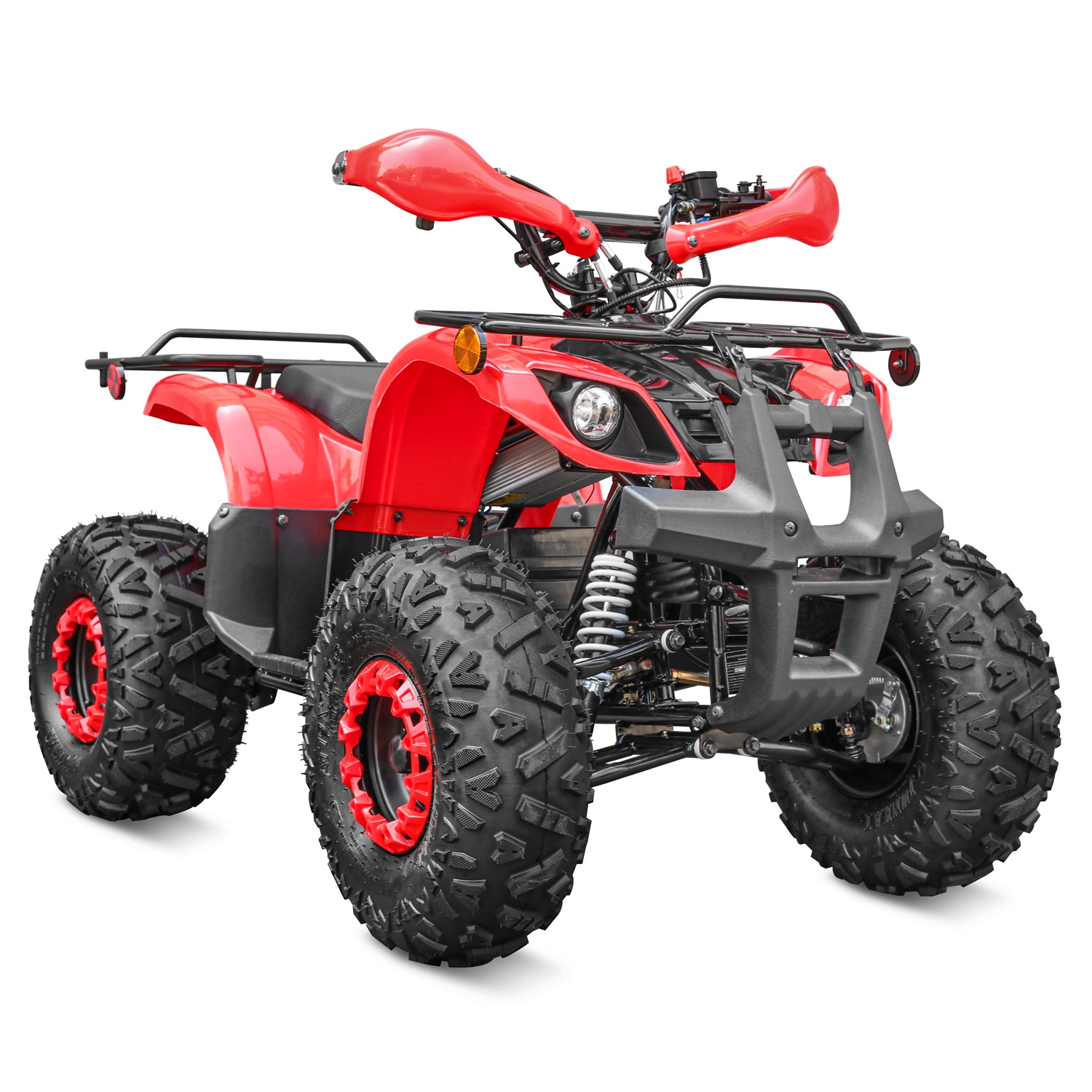

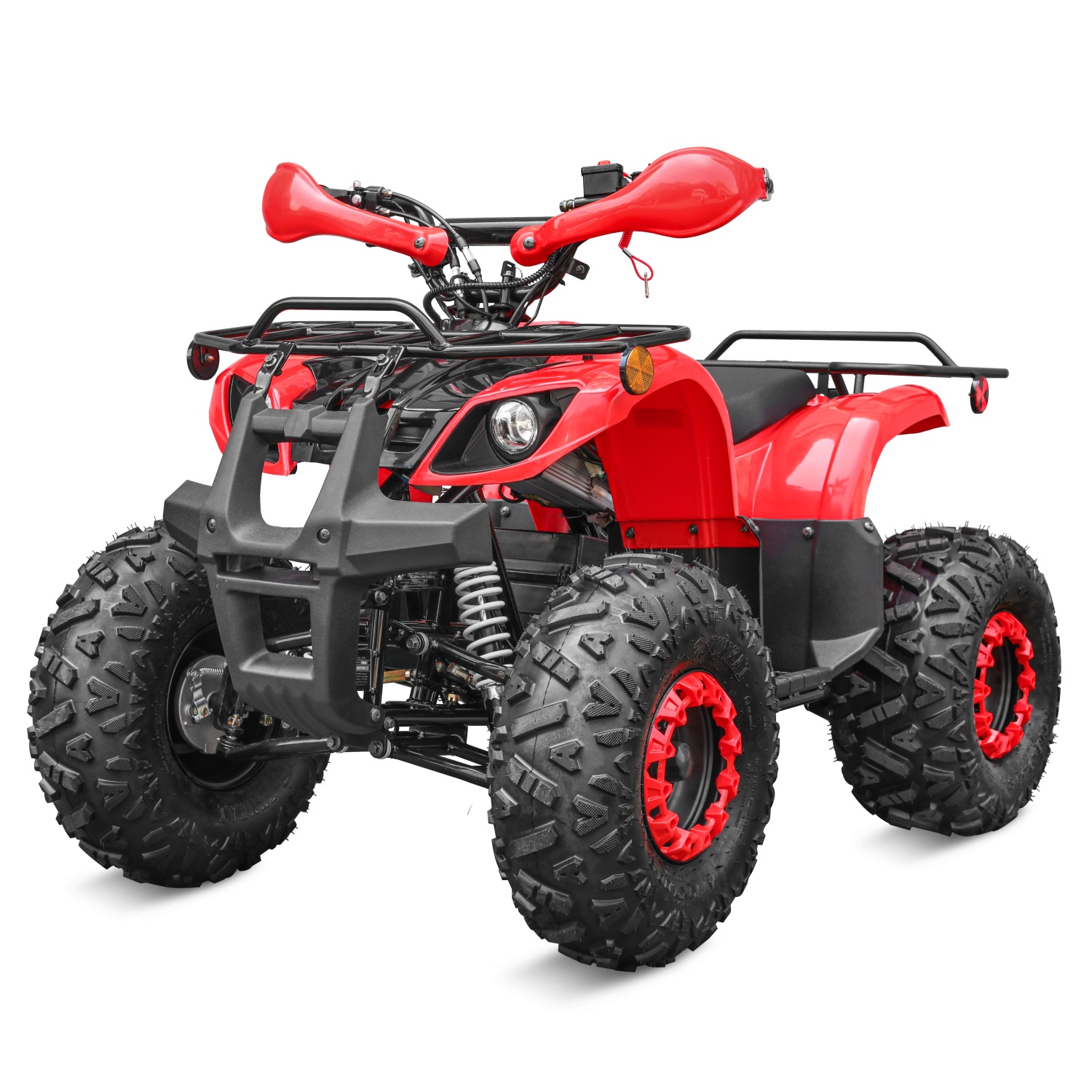

Gallery

Q: can you accept OEM?
A:yes, we can.
Q: What is your MOQ?
A:MOQ is 100 units. At meantime, we also offer sample with charged.
Q: When can you delivery products?
A:Usually 30days. It denpends on your quantity.
Q: what is your payment
A: 30% in advance and balance before loading
Q: where is your factory?
A: We are in Yongkang city, Zhejiang province, China
Q: What payment options do you have?
We have some kinds of payment. Such as TT, LC and West Union,Euro and USD accounts are supported
