36V Electric 4-Wheeler For Teens And Adults
Model: LMEATV-500M
1. Battery: 36V 12Ah Lead Acid
2.Motor: 36V 800W brush
3.Tire: 6 inch
4.Max Speed: 6km/h, 15km/h, 25km/h
Share:
PARAMETERS
| Item No | LMEATV-500M |
|---|---|
| Motor | 36V,500w brush motor |
| Battery | 36v,12Ah lead acid battery |
| Rated Speed(RPM) | 2500r/min |
| Rated Current | ≤18.3A |
| Rated torque | 1.7N.M |
| Drive | Chain drive |
| Suspension | Dual Spring Damper;Single Spring Damper |
| Brakes F/R | Dual Disc brake ；Single Disc Brake |
| Tires F/R | F:4.10-4;R:4.10-4( 4 inch) |
| Seat Height | 47cm |
| Wheelbase | 69cm |
| Ground Clearance | 5cm |
| G.W/N.W | 43/39kgs |
| Max.Load | 50kgs |
| Max speed | 20km/h |
| Charging time | 6-8Hours |
| Brake distance | 20km/h ≤4m |
| L*W*H | 101*59*67cm |
| Packing size | 105*58*53cm |
| Container Load | 88pcs/20ft,220pcs/40HQ |
PERFORMANCE UPGRADE
This mini quad has been specified for quality, performance and reliability, Improvements specified over standard mini quads include ：
Power
Upgraded from the standard 350w and 500w, the quad is fitted it with a fantastic 800 watt 36-volt hi-torque motor! This gives an equivalent performance of a higher wattage unit, but with greater reliability.
Wheels
Supplied with larger 6″ wheels, for more ground clearance than the traditional 4″ fitted to mini quads, to cope with a rougher ground for even more fun. The longer wearing higher grade tyres also give better grip and reduce the number of changes required.
High-Quality Suspension
Three high-grade shock absorbers giving a smoother ride and weight management. Weight Limit 60kg, over 9.5 st.
Three-Disc Brakes
Two front disc brakes and an independent rear disc brake for safety.
Adult Control
A simple switch controls 3 speeds, the slowest setting being 6 km/h, the middle setting being 15 km/h, and the fastest setting being 25 km/h. Instant Power Shut Off on Brake.
DETAILS

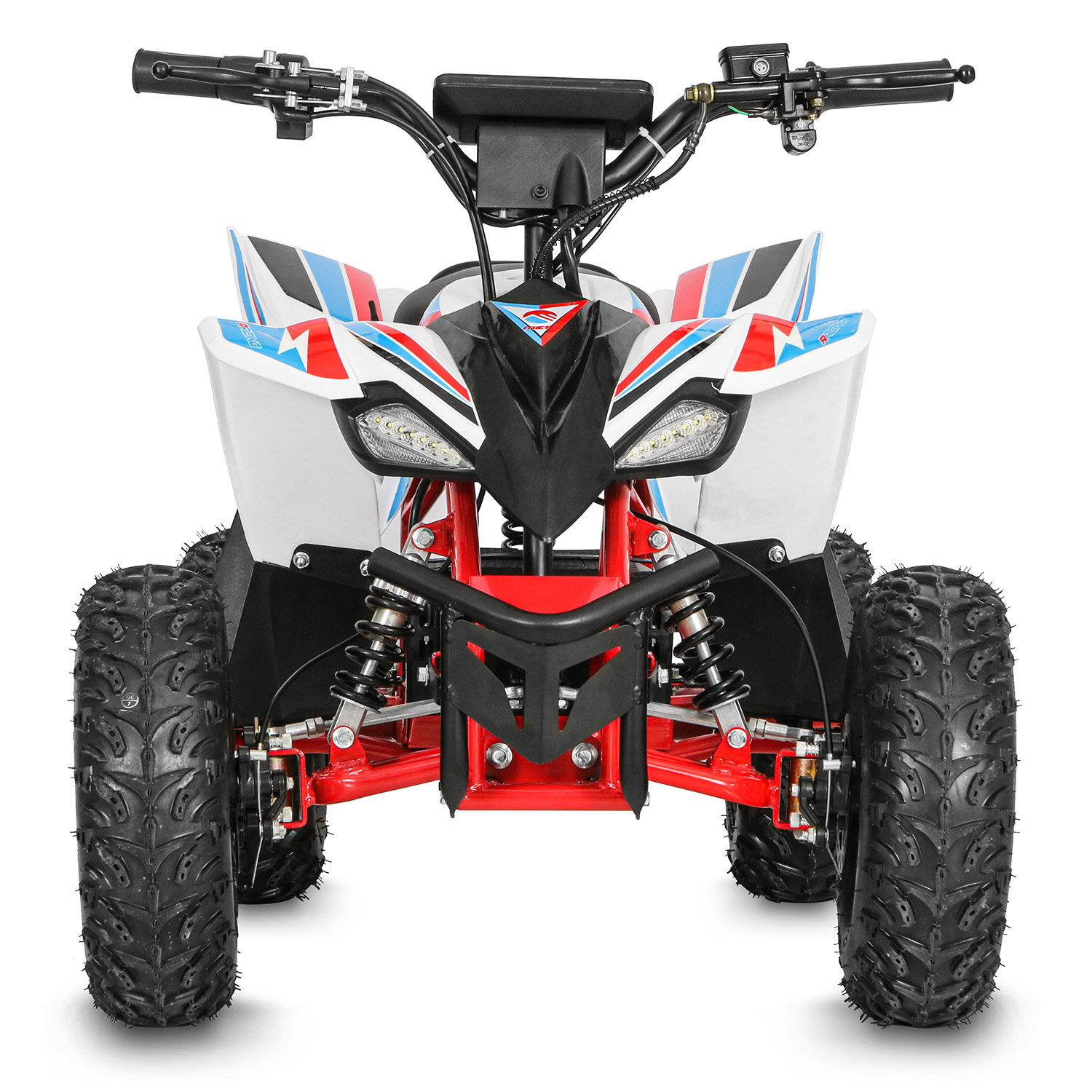

Kids Electric Mini Quad – 800w Electric Version
Kids will have the time of their lives riding this tough little monster.
The Ranger features LED headlights, big wheel and tyres with a farm-style UTV style body, including front and rear racks for the full farm quad look.
Don’t be deceived by the images, it looks larger than life and is a great replica, but is a true mini quad. This is perfect for younger children.
With great torque and real outdoor rubber tyres, as with all our children’s quad ranges, these are not your traditional ride-on toys.
Almost silent, this quad will offer hours of fun in almost any children’s outdoor environment, not just the kitchen!
Solidly built and simple to maintain, the quad will deal with grass, gravel, concrete and even gentle off-road.
A strong steel frame that has the ability to bear your child’s weight as they grow, and real outdoor rubber tyres with a sensible clearance from the floor separates these quads from similar priced plastic-based toys. This is, in fact, a mini quad bike, with all the fun and versatility that provides.
Please bear in mind that this model is for dry use only and should you wish to use a quad in wet, muddy conditions please look at our petrol-based models.
Adult control is as standard with three-speed settings to adjust as your child becomes older, better skilled and comfortable with riding. Forward, neutral and reverse gears and a twist grip throttle is also standard for younger hands.
FRAMEWORKS
FAQ
1.What certificate do you have for ATV quad and dirt bike and ect?
Our factory has 1S09001， WMI and BSCI
a.All ATV and and Dirt bike are CE.ROSH available.MD for euro also in testing.
b. 110cc 125cc 150cc ATV and dirt bike with EPA approved ,have no problem for sell to US and CA.
2.Couldiusemy own LOGOordesignongoods?
Production order,we can use your own LOGO Or your
Yes. When you have a big quantity mass language;manual,and etc,
3.How long the battery can use?
We can recharge it more than 300 times. For the distance , we can see in the catalogue according to the different size battery.
4.Which is better , engine or electric ?
Both we have ,Its according to your market need , also some countries will have high import rate for the engine ATV or DB, you can check firstly for your market need and import policy, we all can offer according to your need .
5.Do you also sellhelmet,kneelet and other things?
We only sell vehicles but we can find it for you.
6.we can’t drive it on the road?
All our models are for off-road use.
Send us an inquiry
Q: can you accept OEM?
A:yes, we can.
Q: What is your MOQ?
A:MOQ is 100 units. At meantime, we also offer sample with charged.
Q: When can you delivery products?
A:Usually 30days. It denpends on your quantity.
Q: what is your payment
A: 30% in advance and balance before loading
Q: where is your factory?
A: We are in Yongkang city, Zhejiang province, China
Q: What payment options do you have?
We have some kinds of payment. Such as TT, LC and West Union，Euro and USD accounts are supported
