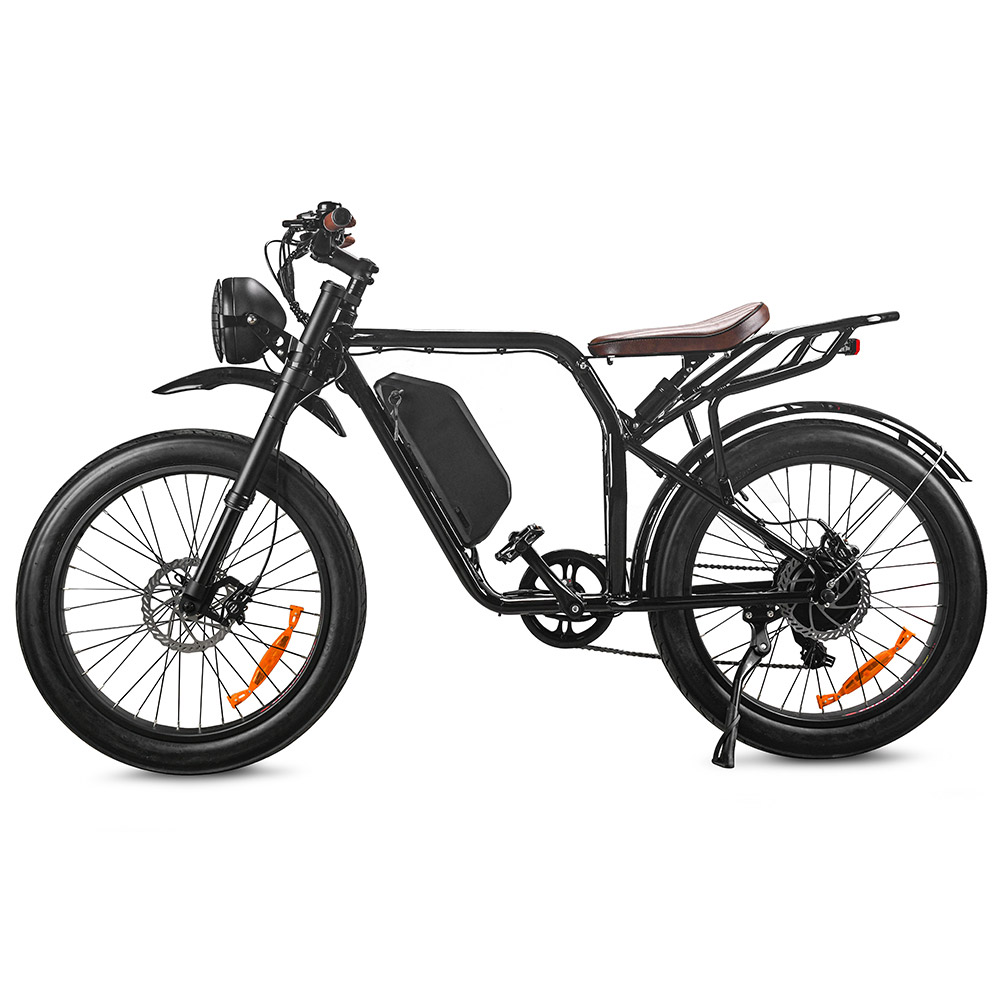

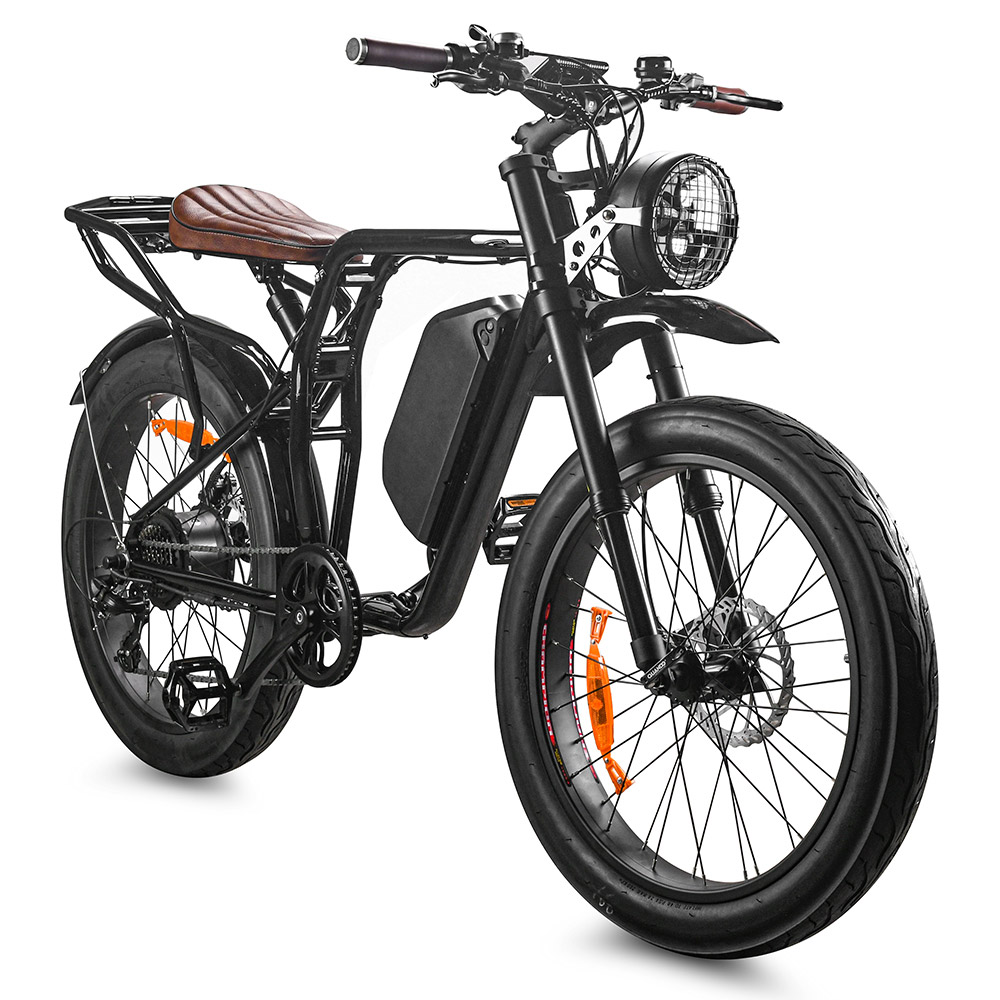

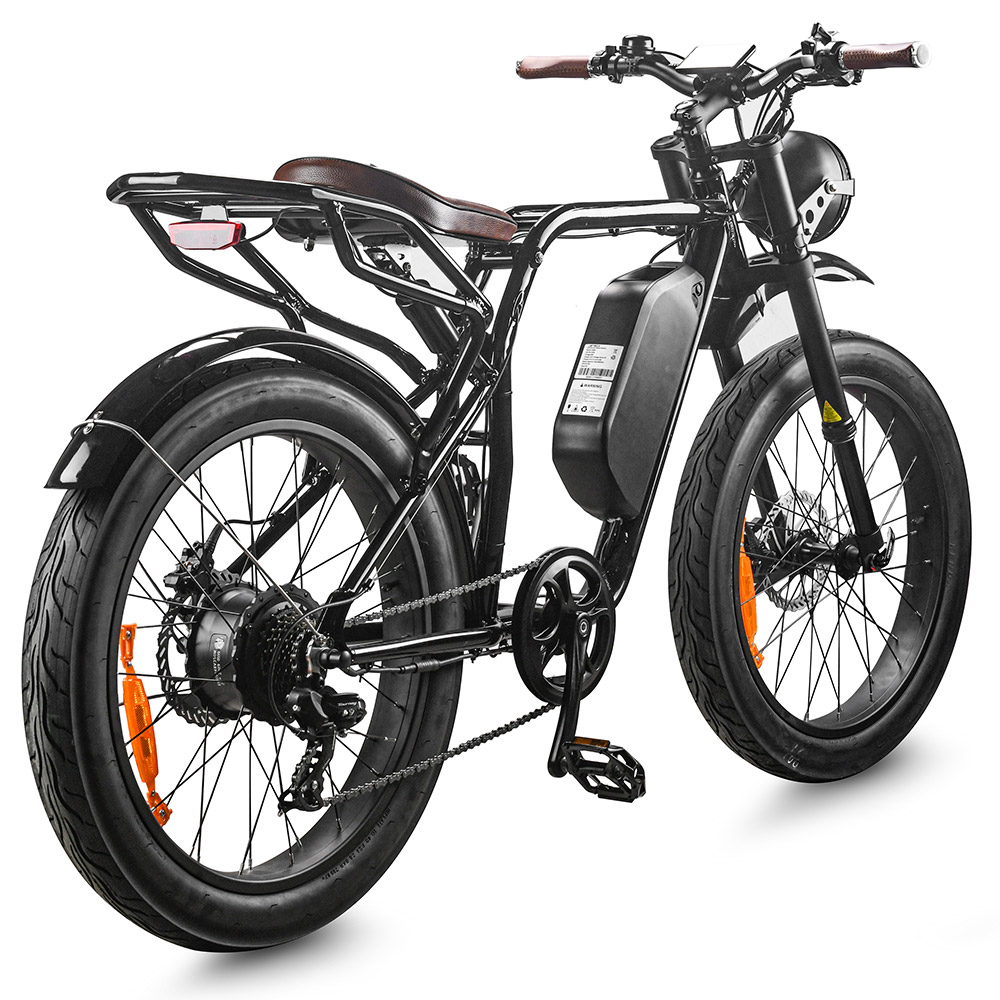

24 Inch Fat Tire Bike

Model: LMTDF-57L

24 inch fat tire ebike each size is aimed at a different demographic. brushless, rear drive 350W. It is very comfortable to ride on sand and muddy dirt road.

Share:

PARAMETERS

Item No

LMTDF-57L

Frame

24" alu alloy 6061#,lianmei own design

Fork

alu alloy 6061#,lianmei

Handle bar

alu alloy 6061#,lianmei

Stem

alu alloy 6061#,lianmei

Rim

alu alloy 6061# double wall rims

Tire

24*3.0 fat tyre

Battery

48V10Ah lithium battery ,Removable battery

Motor

brushless,rear drive 350W

Display

LED display, 5 level PAS speed,

Controller

48V, brushless hall controller

Brake

F/R Hydraulic disc brake

Derailleur

Shimano,7 gears

Distance range

35-50km

Carton size

145*28*85CM

N.W/G.W

29/32KGS

Max speed

25km/h EU standard , 32km/h US standard

Contaienr loading

80 pcs/20FT,192pcs/40HQ

Max loading

120kg

Funcation

PAS & TAG( Throttle) / EU only PAS system

DETAILS

*Hyper Power Motor: 350w powerful brushless motor with a top speed of 25km/h conquer all kinds of rugged terrain easily and experience a life of adventure like never before.

*Removable Battery in Highest Configuration: The 48V 10AH massive capacity battery provides a range of up to 35-50kms in pure electric and 50-60kms in pedal-assist. Adequate for your daily commute and outdoor explorations. Innovation battery structure is more stable and easier put the battery in and out.

*Larger Capacity Storage: To expand the storage space possible, LMTDF-57L is specially designed with a sturdy rear rack to increase the load capacity. Bring more possibilities in your exploration and convenience for your daily commute.

*Strong Frame: The most popular bike frame, step thru is designed to provide convenience and specificity for all, also is most acceptable for all than over step design. Getting on and off more comfortable and easier.

*Double Shock Absorption: Front suspension fork and suspension seat post improve shock absorption and smooth riding. Minimizes the sensation of bumps when riding on bumpy roads.

*Multifunction Display & 3 Working Mode: The LED digital display clearly demonstrated the bike moving status including speed, battery level, pedal assist level, distance, etc. Easily switch between three riding modes such as Pure electric mode, Intelligent 3 level pedal assist mode in different cycling needs.

*Twist Grip Throttle & Shimano 7-Speed: Newly upgraded twist throttle releases your thumbs, making it easier to control your speed and ride more safely. Shimano 7-Speed’s wide shifting range is smoother and more precise, allowing to quickly shift effortlessly on different surfaces.

*24″ x 3.0 Puncture Resistant Fat Tire: Wear-resistant, skid-resistance and high-quality Chaoyang tires. 24″ x 3.0 fat tires offer stronger grip, more stable to cross obstacles and easily cope with various rugged surfaces for outdoor adventure.

FRAMEWORKS

FAQ

1. What system for this electric bicycle?
    PAS & TAG( Throttle) / EU only PAS system

2. What max loading for this is electric bicycle?
    120kgs(265lbs)

3. What is the max speed?
    25km/h for Euro, 32km/h for US

4. What is the distance range?
    35-50km based on the battery capacity is 48V 10Ah.

5. What is the MOQ?
    For the electric bike, the mini order quantity is 50pcs.
