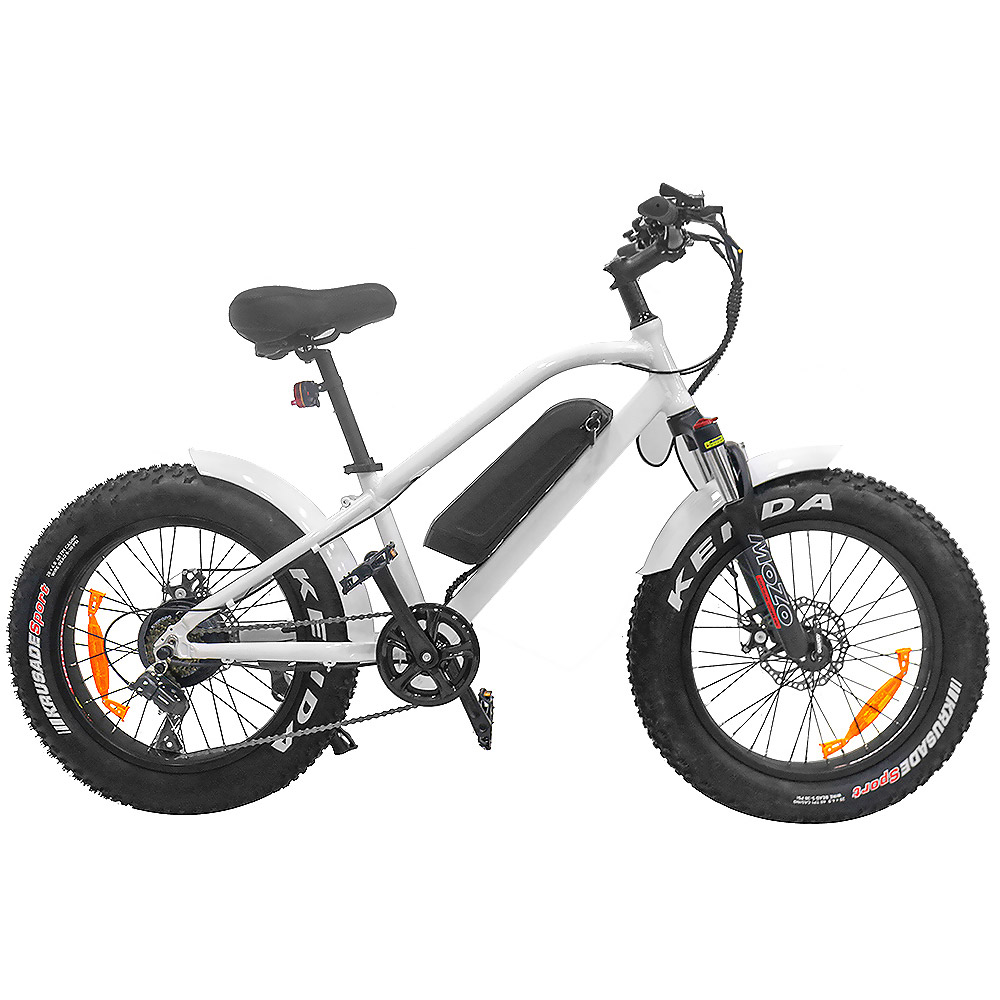

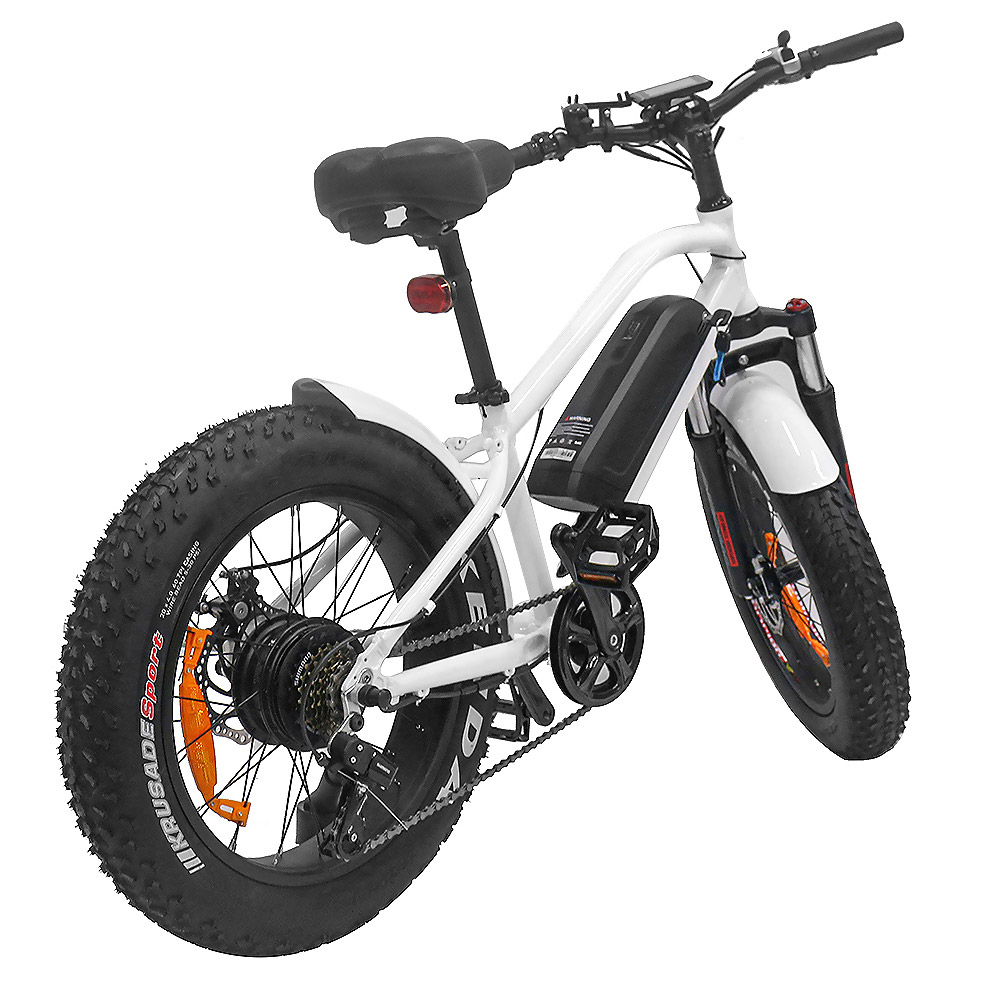

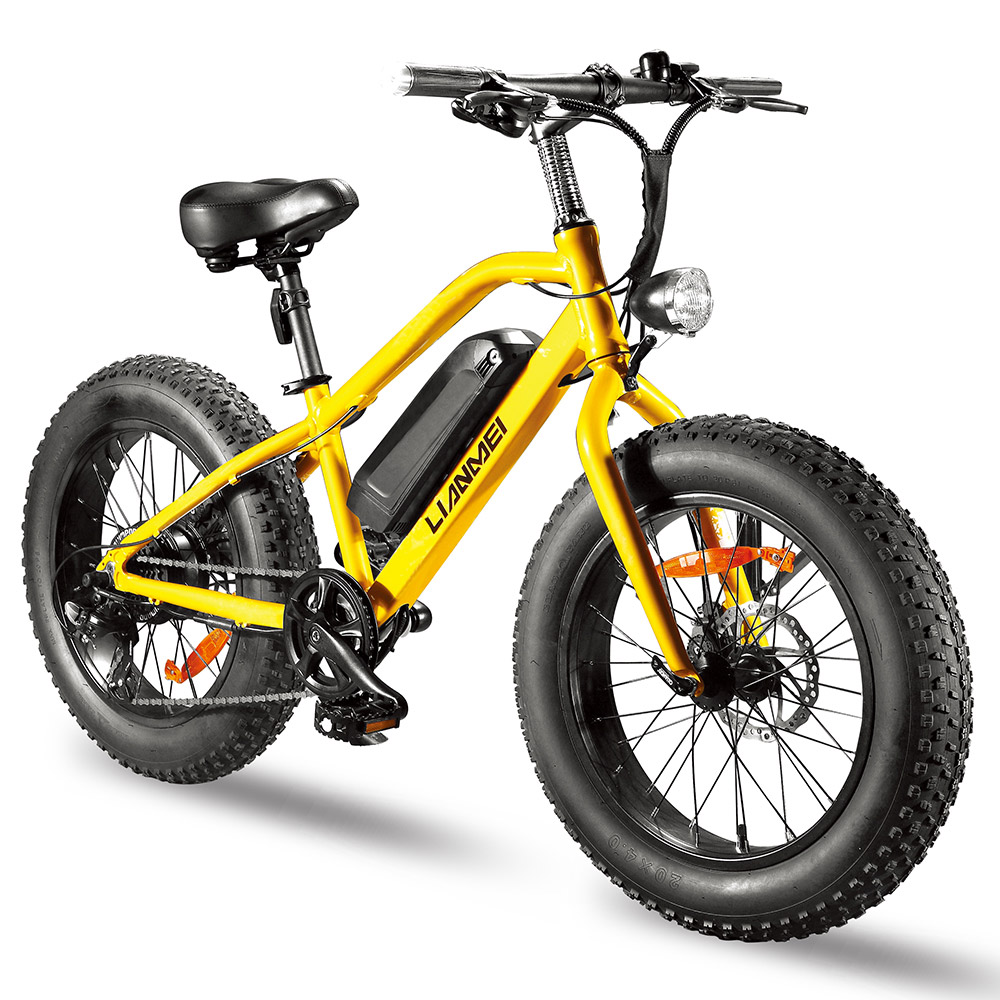

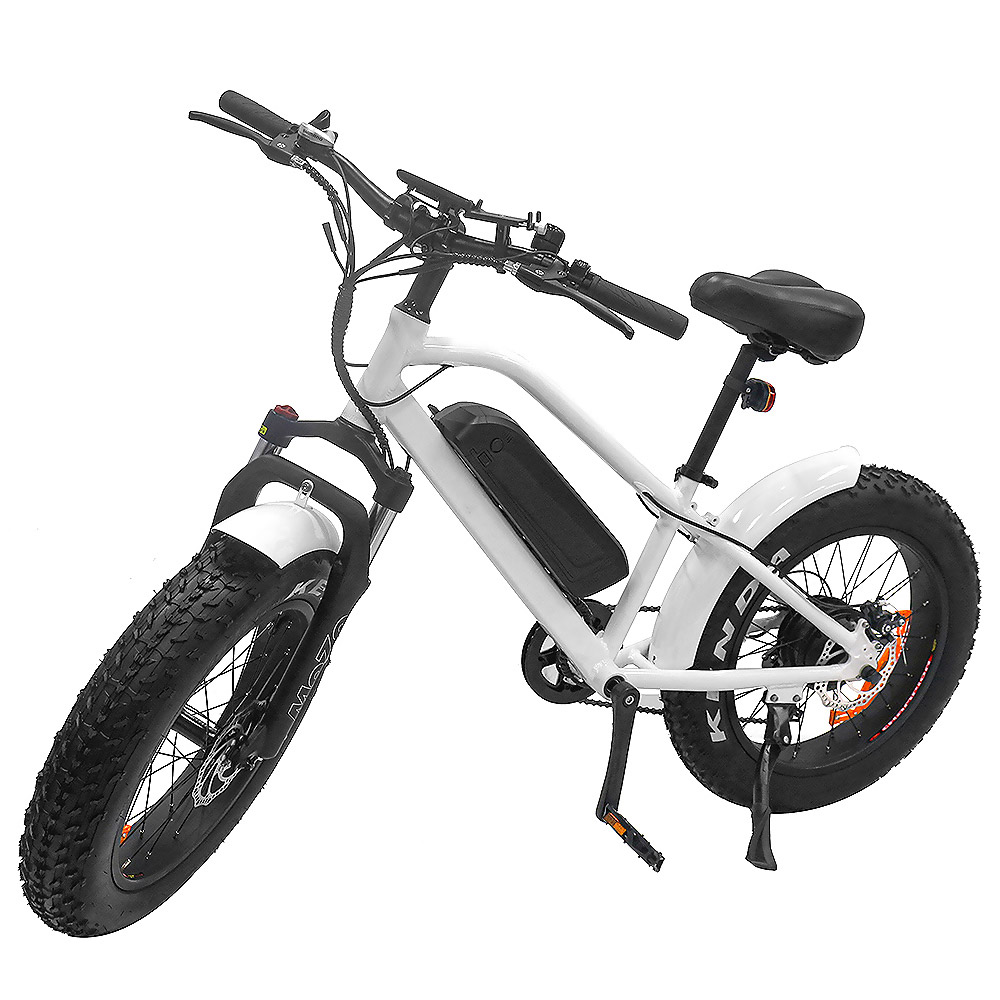

20inch Fat Tire Electric Bicycle Shimano
Frame: Aluminum alloy
Wheels: 20inch front/rear tires
Max. Load: 120 kgs
Motor: 250W
Battery: 36V 10.0 Ah li-ion
Max. Speed: 25km/h
Share:
PARAMETERS
Item No | LMTDN-02L |
---|---|
Frame | 20" alu alloy 6061#,lianmei |
Fork | alu alloy 6061#,lianmei |
Handle bar | alu alloy 6061#,lianmei |
Stem | alu alloy 6061#,lianmei |
Rim | alu alloy 6061# double wall rims |
Tire | 20X4.0inch fat tyre |
Battery | 36V10Ah lithium battery |
Motor | brushless,DC motor,rear drive 36V250W |
Display | LED display, 5 level PAS speed, |
Controller | 36V, brushless hall controller 6A |
Brake | F/R disc brake, ZOOM/ |
Derailleur | Shimano,6 gears,TOURNEY |
Distance range | 35-50km |
Carton size | 132*28*74CM |
N.W/G.W | 23/28kgs |
Max speed | 25km/h EU standard , 32km/h US standard |
Contaienr loading | 102pcs/20ft,243pcs/40HQ |
Max loading | 120kg |
Funcation | PAS & TAG( Throttle) / EU only PAS system |
DETAILS
20inch 750W Fat Tire Electric Bike for Adults
Why Choose this Electric Bike?
Compared with foldable electric bike, the frame of our ebike is stronger, more stable, with better load-bearing capacity, longer service life, fewer product problems and more comfortable to ride.
Three Riding Modes: regular riding, full-power electric power-assisted, hybrid power-assisted pedalling.
250W Powerful Motor:Provides faster acceleration and more powerful power when climbing.No worries on the terrains or commute to hilly town.
36V 10Ah Large Capacity LG Battery: Provides extended travelling mileage,covering a range of 35+ kilometers per full charge,safe and convenient to bring home or office to recharge.
Suitable for most people, Commuters,Recovering from injuries,Older folks,Recovering from injuries,Physically disabled and so on.You will get more fun from the electric bike.
FAQ
What’s the minimum order quantity?
MOQ is 50pcs.
Can I use my own logo?
Yes, you can use your own logo on the bike.
Can I use my own colors?
Yes, after you provide pantone no., we will check the colors foryou.
What’s the battery capacity?
Our standard is 36V 10.0Ah, you can customize more bigger capacity.
What’s the motor power?
Our standard is 250W, you can try 350W, 500W or 750W.
Send us an inquiry
Q: can you accept OEM?
A:yes, we can.
Q: What is your MOQ?
A:MOQ is 100 units. At meantime, we also offer sample with charged.
Q: When can you delivery products?
A:Usually 30days. It denpends on your quantity.
Q: what is your payment
A: 30% in advance and balance before loading
Q: where is your factory?
A: We are in Yongkang city, Zhejiang province, China
Q: What payment options do you have?
We have some kinds of payment. Such as TT, LC and West Union,Euro and USD accounts are supported
