26 Inch Electric Mountain Bike With Damping
Model: LMTDF-31L
Integrated 36V, 10Ah Li-Ion Battery — Large capacity battery provides longer cruising range. A hidden battery is built into the frame’s down tube, providing waterproofing and the ability to remove the battery if necessary.
Share:
PARAMETERS
| Item No | LMTDF-31L |
|---|---|
| Frame | 26" ,Alu alloy 6061#, battery insert into the frame |
| Fork | alu alloy 6061#, suspension fork |
| Handle bar | alu alloy 6061#, |
| Stem | alu alloy 6061#, adjustable |
| Rim | alu alloy ,double wall rims, |
| Tire | 26X1.95inch , MTB tyre |
| Battery | 36V10AH lithium battery 18650#, China brand |
| Motor | Alu alloy,rear motor,36V350W |
| Display | LCD display 5 level pedal assisted speeds |
| Controller | 36V,brushless hall controller |
| Brake | F/R disc brake |
| Derailleur | shimano 6 gears,TOUNERY |
| Distance range | 35-50KM |
| Carton size | 150*28*77cm |
| N.W/G.W | 24/29kgs |
| Max speed | 25km/h EU standard , 32km/h US standard |
| Contaienr loading | 84pcs/20ft, 192pcs/40HQ |
| Max loading | 120kg |
| Funcation | PAS & TAG( Throttle) / EU only PAS system |
DETAILS
Low-Step Frame Design
Featuring a low step frame equipped with a cushy saddle, swept-back handlebar meaning that you will experience the power in one of the most relaxed and comfortable positions you’ll ever find yourself in on any ebike!
350W Brushless Geared Motor
The geared hub motor provides more torque from standstill and for climbing with smooth acceleration and less noise. Use a high-resolution 12-magnet cadence sensor, which makes starting and stopping more predictable.
Removable 360Wh Modular Battery
With 36V/10AH large capacity battery, max travel range up to 25 miles under pure electric mode and 40 miles in pedal assisted mode. Quick removable modular battery let you can charge the battery pack on or off the frame.
Low-Step Frame Design
Featuring a low step frame equipped with a cushy saddle, swept-back handlebar meaning that you will experience the power in one of the most relaxed and comfortable positions you’ll ever find yourself in on any ebike!

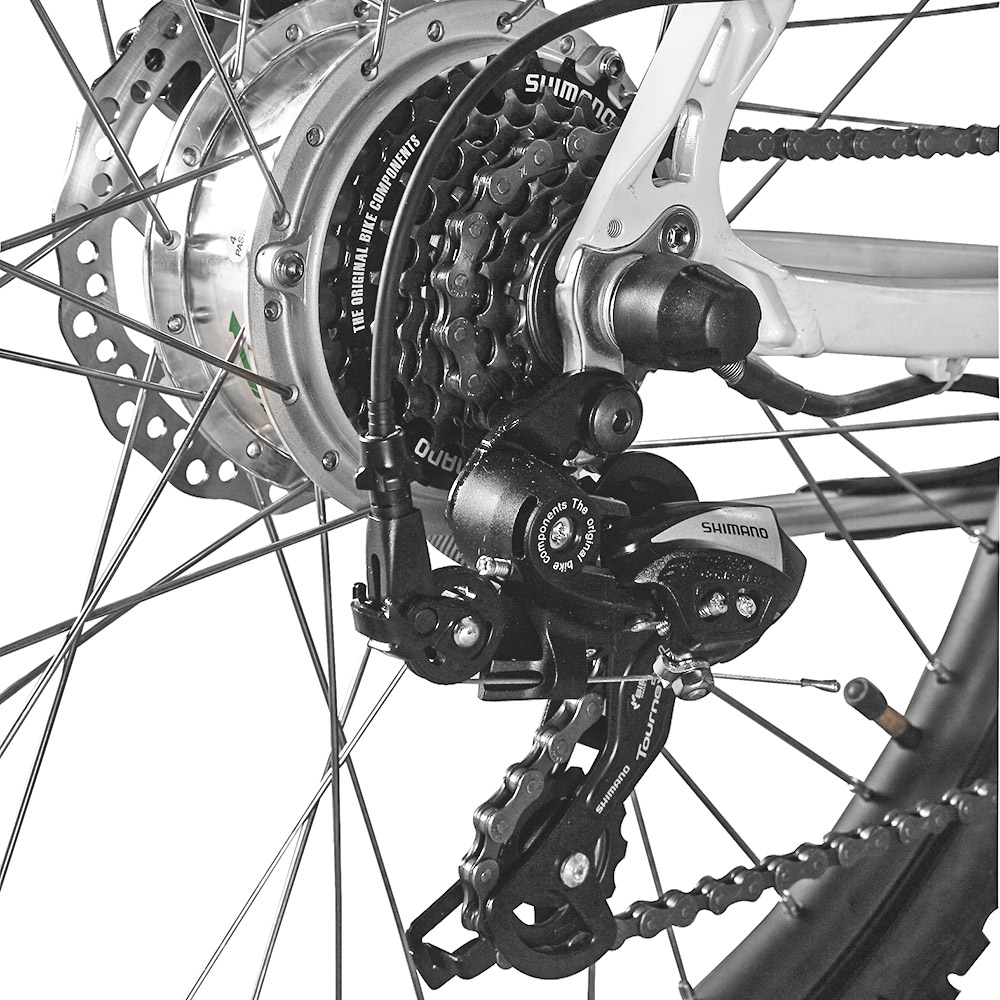

Shimano 6-Speed
Customize your ride performance with Shimano 6-Speed. A wider range of gearing at your disposal mean more torque for treacherous uphill climb and matintain pedal authority at top speed. The cogs are nickel coated, which makes them rust resistant and a lot smoother to shift.
FRAMEWORKS
FAQ
1.How is the bike working ?
Our electricbike has 2 functions.Pedal assisted system,and throttle function.Mainly,PAS is for EU,AU,JAPAN,etc.
Throttle is for North and south American.For PAS function,while you pedaling,the motor will be working.When you stop pedal,the motor stops.
So keep pedaling,keep working.Throttle is very easy, just twist, its working. so we can offer the exactly demands for your market .
2.How long does the battery use ?
Our battery is lithium battery. Recycle time is more than 800tims. And we also have Samsung,Panasonic battery for choice.
3.How long does the bike riding ?
After full charged,we can ride about 50kms with PAS,or 40kms with throttle.
4.How long takes to chargerthe battery?
4-6 hours for full charger.
5.How can we charger the battery?
Its very easy, we can charger it directly to the battery on the bike, or we can just take it home tocharger.
6.Whatyourwarranty?
Frame 3 year,battery 2 year,motor 1 year,controller 1 year.
7.What’s the MOQ ?
30pcs/ model.But we can offer samples for your testing.
8.car we put our logos ?
Yes,we do OEM.We can print your logo on the frame,but at MOQ 30pcs ebikes/model.
9.How many colors we can choose foreach model?
Its based on the qty.Ifit’s a full containerorder model bike,you can choose 3 colorwithYS-color code.If with serval model for a container,we accept 3 colors for a container.
10.do you have CE certifications ?
Yes, we do. we have CE/EN 15 194,EN 14764 from SGS and TUV. We can send you the copy of thefiles.
11.How about the spare parts ?
For the container order,we will offer you 1% value of the bike as free spare parts.A clear list will beoffered for your choice.
12.What if battery break down?
We have warranty for battery,also for frame,motor,and controller.
13.Are you the trade company or manufacture?
We are the ebike manufacturer since 2007.All our ebikes are exported.We have very professionalschedules for produce.And before working,our staff will
be trained for 2 months.And we control thequality very well,for example,we have 4 steps to check the quality.1%, when materil is coming,
IQCwill check the material ,iffail,we will return to supplier immediately.2″,when producing,if fail,wewill change to new components,
3″,after producing,QC checking.If some problem,we fix them orchange the components.4″，after packing,sales dept will chose some bike to checking.
Send us an inquiry
Q: can you accept OEM?
A:yes, we can.
Q: What is your MOQ?
A:MOQ is 100 units. At meantime, we also offer sample with charged.
Q: When can you delivery products?
A:Usually 30days. It denpends on your quantity.
Q: what is your payment
A: 30% in advance and balance before loading
Q: where is your factory?
A: We are in Yongkang city, Zhejiang province, China
Q: What payment options do you have?
We have some kinds of payment. Such as TT, LC and West Union，Euro and USD accounts are supported
