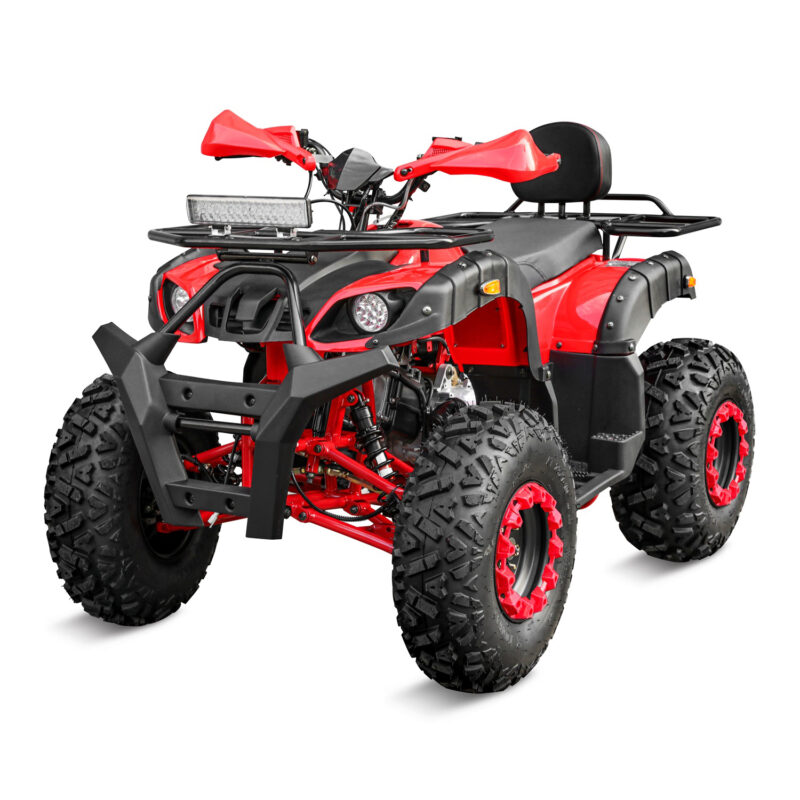

LMATV-125HM 125cc ATV 4 Wheels Quad
The 125cc four stroke ATV, it’s 125cc four stroke, LONCIN engine, single cylinder, air-cooled. The starting way is electrical start, used 12V 6.5Ah lead acid battery to start. The 125cc ATV drive is chain with chain tension and protector.
Share:
PARAMETERS:
| Item No | LMATV-125HM |
|---|---|
| Engine | 125cc Four Stroke, Single Cylinder, Air Cooled, LONCIN engine |
| Bore & Stroke | 52.4*55.5 mm |
| Starting | Electrical Start (12V6.5Ah) |
| Drive | Chain with Chain Tension and Protector |
| Transmission | 1+2+3 -N-R gear |
| Suspension | Dual Shock Absorber; Single Shock Absorber |
| Brake | Dual Drum Brake, Single Hydraulic Disc Brake |
| Tyre | 19*7-8;18*9.5-8 with Steel Rim |
| Fuel Tank | 2.3 L Plastic Fuel Tank |
| Seat Height | 67 cm |
| Wheelbase | 111 cm |
| Ground Clearance | 12 cm |
| Max. Loading | 110 Kgs |
| Max. Speed | 55 Km/h |
| Product Size | 177*100*106 cm |
| Packing Size | 147*83*82 cm |
| G.W./N.W. | 130 / 112 Kgs |
| Brake Distance | ≤ 7m at 30 Km/h |
| Container Loading | 22 Pieces/20”FT, 66 Pieces/40”HQ |
Gallery
Q: can you accept OEM?
A:yes, we can.
Q: What is your MOQ?
A:MOQ is 100 units. At meantime, we also offer sample with charged.
Q: When can you delivery products?
A:Usually 30days. It denpends on your quantity.
Q: what is your payment
A: 30% in advance and balance before loading
Q: where is your factory?
A: We are in Yongkang city, Zhejiang province, China
Q: What payment options do you have?
We have some kinds of payment. Such as TT, LC and West Union，Euro and USD accounts are supported
